Induction pump

Process-safe induction pumps for selective mini wave soldering

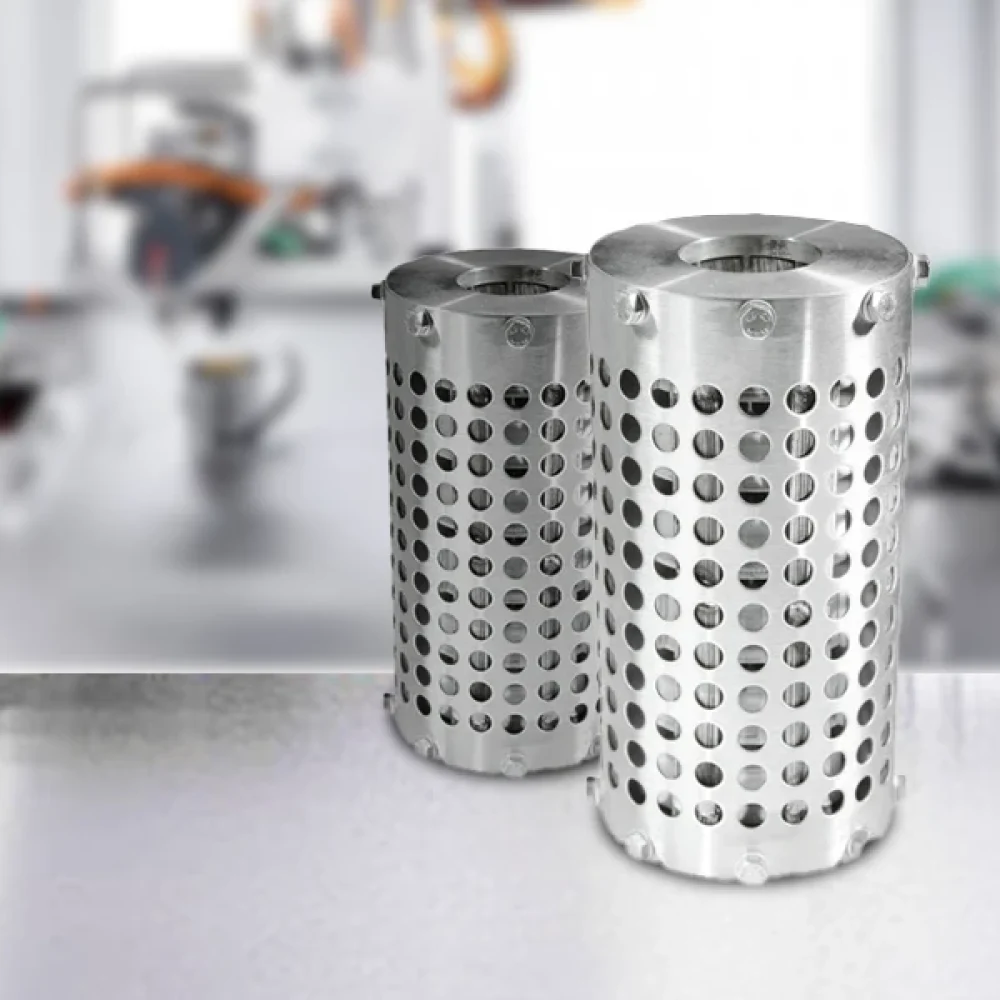

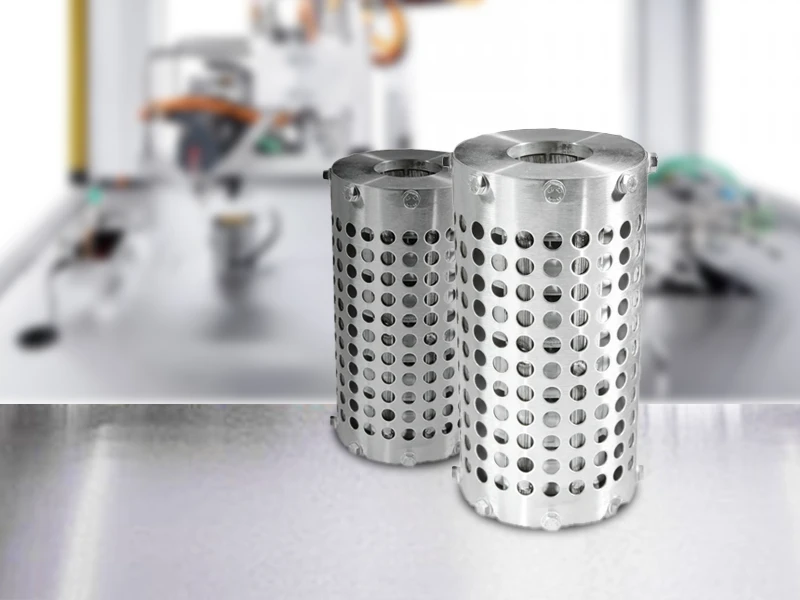

The induction pump manufactured by EUTECT itself, which uses an electromagnetic drive to turn the solder into a mini wave, is installed transversely and is therefore particularly low-maintenance.

Benefit

The EUTECT induction pump works without moving parts in the solder and is particularly robust thanks to its design.

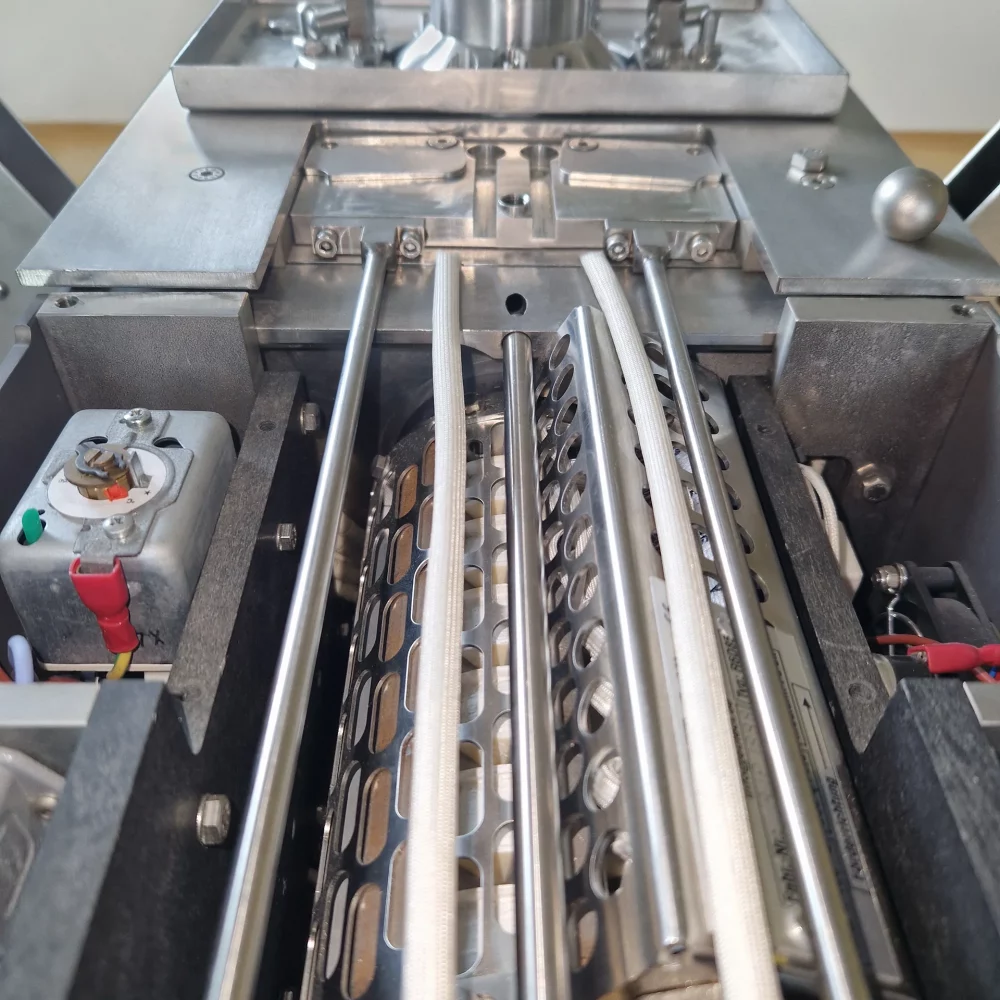

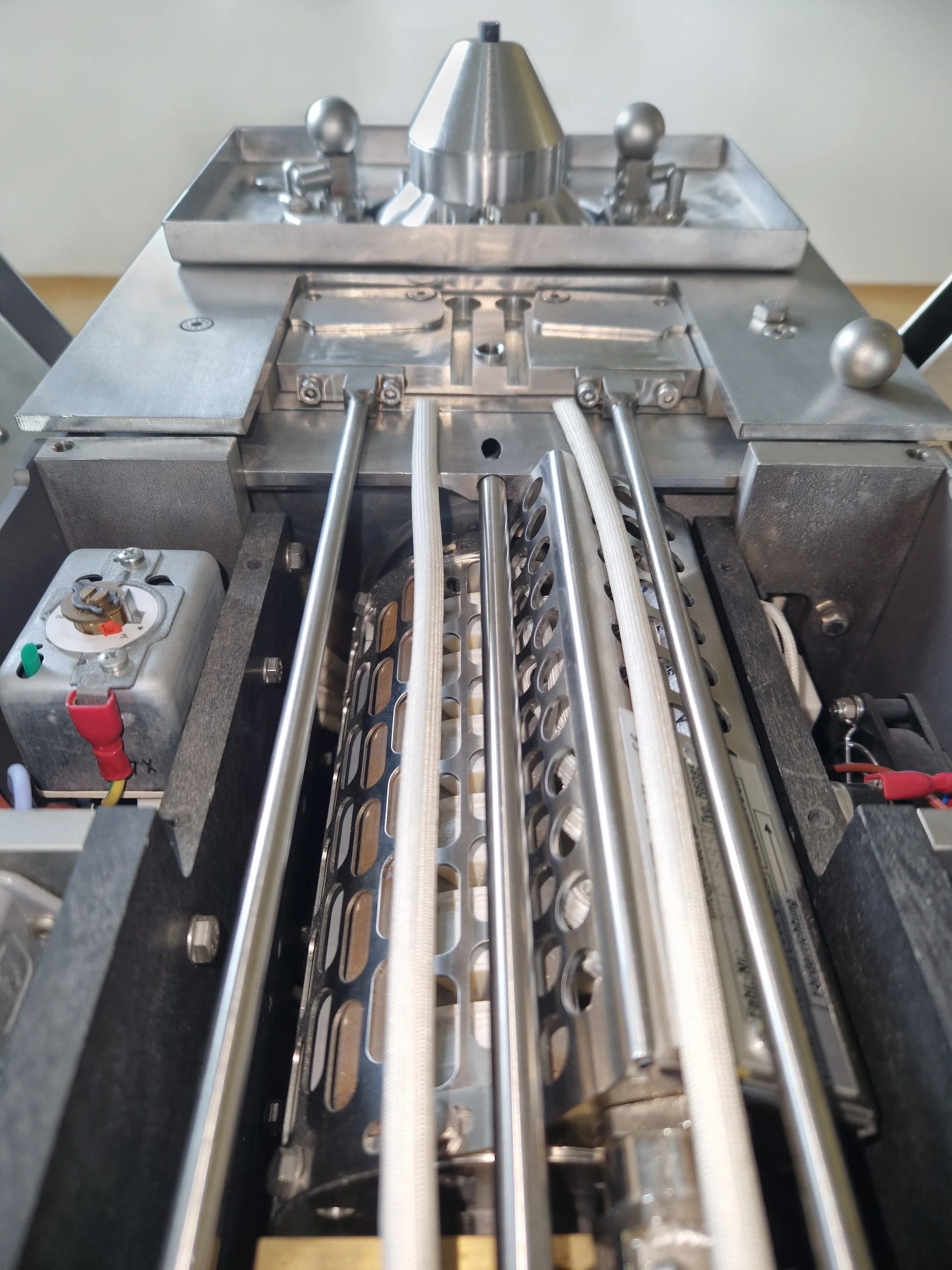

We install the induction pump we manufacture ourselves horizontally in our soldering modules. As a result, significantly less burn-off and dirt is deposited from the solder joints in the induction pump. Thanks to the electromagnetic drive, the solder is conveyed to the solder nozzle completely free of mechanical parts in the solder. This makes our induction pump particularly low-maintenance and easy to service. The EUTECT induction pump also works reliably in the high-temperature range up to 475°C.

Product highlights

80% fewer spare parts required
50% less service and maintenance costs
High-temperature soldering up to 475°C soldering temperature
Minimal installation space
Long service life
Up to 8 mm/sec soldering speed
No rotating parts in the plumb bob

Functionality

Induction pumps are based on the principle of electromagnetic induction and set conductive liquids, in our case liquid solder, in motion. Based on electromagnetic fields, they generate a flow without the need for moving mechanical parts.

Induction pumps are based on the laws of Faraday and Lorentz. Faraday's law of electromagnetic induction states that a change in magnetic flow through a conductor loop induces an electrical voltage. The Lorentz force occurs when a conductive material is in a magnetic field and electrical currents are generated. The interaction between the magnetic field and the induced currents creates a force that acts on the conductive material and sets it in motion.

Advantages

As described above, the EUTECT induction pump does not have any moving mechanical parts. This reduces wear and minimizes the risk of leaks. The induction pump requires little maintenance because mechanical parts do not come into direct contact with the liquid. The pump is therefore less sensitive to corrosion and mechanical wear. The contactless power transmission makes the induction pump particularly suitable for liquid metals that are exposed to high temperatures and have to withstand chemical reactivity.

Applications outside the electronics industry

Metallurgy and liquid metals

In the metal industry, induction pumps are used to transport liquid metals such as molten aluminum or steel. Since no mechanical parts come into direct contact with the medium, they are well suited for operation at extremely high temperatures.

Nuclear technology

In nuclear power plants, induction pumps can be used to transport liquid sodium or other liquid metals used as coolants. The high conductivity of these metals makes electromagnetic pumps effective.

Chemical industry

Induction pumps are also suitable for use with corrosive electrolyte solutions in which conventional pumps would wear out quickly due to the chemical reactivity of the medium.

Electroplating

Induction pumps can be used in electroplating processes in which conductive electrolyte solutions have to be circulated. Here, induction pumps can convey liquids efficiently and without mechanical wear.

Cooling and heat regulation

In high-performance cooling systems, induction pumps are suitable for circulating special, electrically conductive coolants. They enable contactless and vibration-free pumping.

Battery and fuel cell applications

In systems that require the circulation of electrolyte solutions, such as redox flow batteries or hydrogen production, induction pumps can move the electrolytes safely and efficiently.

Would you like to find out more?

Why EUTECT?

EUTECT GmbH is an innovative company specialising in the development and production of high-quality soldering systems. Founded in Germany, we have made a name for ourselves as a leading provider of customised, selective soldering technologies and solutions. Our portfolio includes a wide range of selective soldering processes and automation solutions that are suitable for a wide variety of industrial applications.

Our outstanding feature is our ability to develop customised solutions that are precisely tailored to the specific requirements of our customers. By utilising state-of-the-art technologies and with a deep understanding of the specific challenges of electronics manufacturing, we offer innovative approaches that ensure high process reliability and efficiency.

Through continuous research and development, we help to ensure that soldering processes are technically advanced and integrate the concept of sustainability into our processes. In doing so, we take into account state-of-the-art approaches such as the cradle-to-cradle concept in order to minimise our ecological footprint. In addition, we are characterised by excellent customer service, which is based on close cooperation with customers and comprehensive support throughout the entire product life cycle.
