Efficient soldering automation with e-cells

Our scalable E-cells stand for efficient space utilisation and modularity with precision and sustainability.

Benefit

With a grid dimension of 300 mm in width and length, the size of each automation cell can be customised to suit a wide range of tasks, with the option of height adjustment.

Previous slide

Next slide

Performance

To support our EUTECT cradle-to-cradle principle, we have reduced the number of control cabinets and replaced them with centralised and easily exchangeable cabinet solutions. On the one hand, these cabinet solutions support service and maintenance efficiency and, on the other, they enable a new, less complex but more clearly structured wiring concept. In addition to all these sustainable benefits, the rigidity of the automation cells has been increased by over 50 %.

Modularity

Customised flexibility through cell expansion in length and width
Maximum rigidity for precise soldering and automation processes
Central control cabinet for efficient service and maintenance services
Real sustainability thanks to the integrated cradle-to-cradle concept

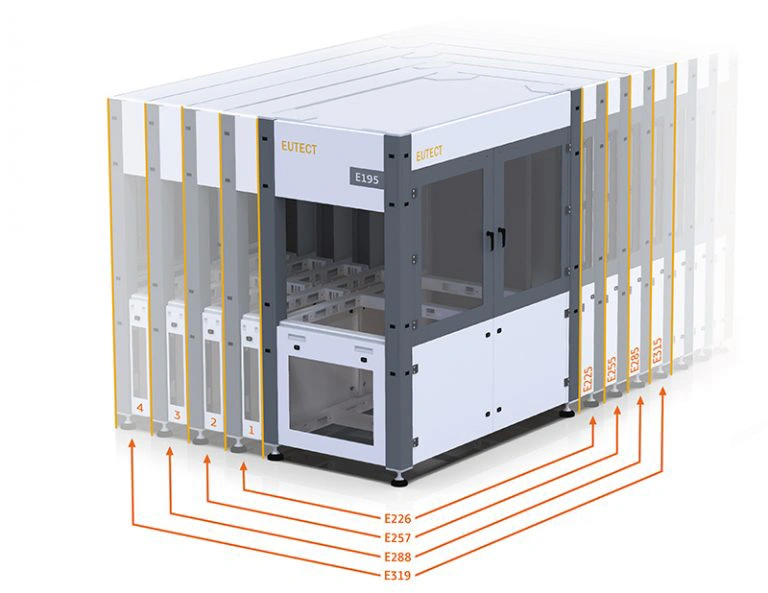

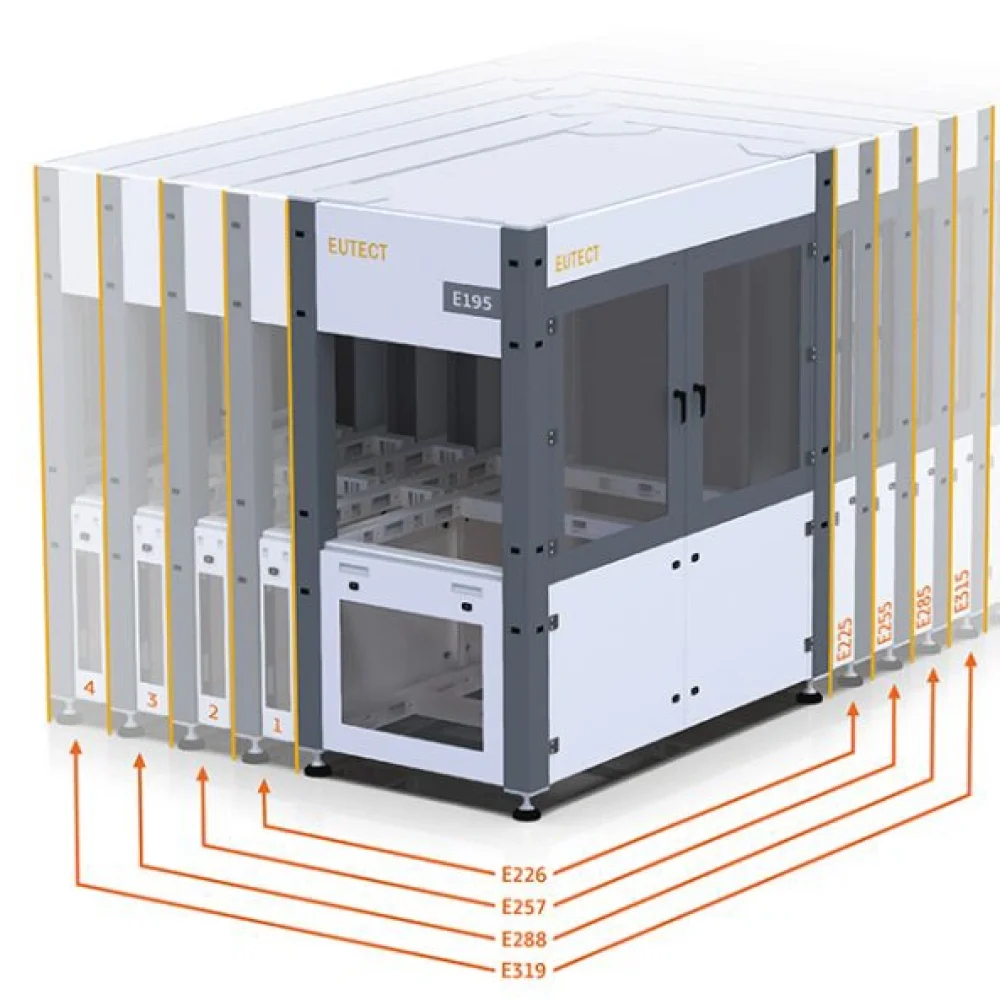

Modularity beyond the standard

			Cell length (m)
			1,35	1,65	1,95	2,25	2,55	2,85	3,15	…
Cell width (m)	1,05	0	E135	E165	E195	E225	E255	E285	E315	…
	1,35	1	E136	E166	E196	E226	E256	E286	E316	…
	1,65	2	E137	E167	E197	E227	E257	E287	E317	…
	1,95	3	E138	E168	E198	E228	E258	E288	E318	…
	2,25	4	E139	E169	E199	E229	E259	E289	E319	…
