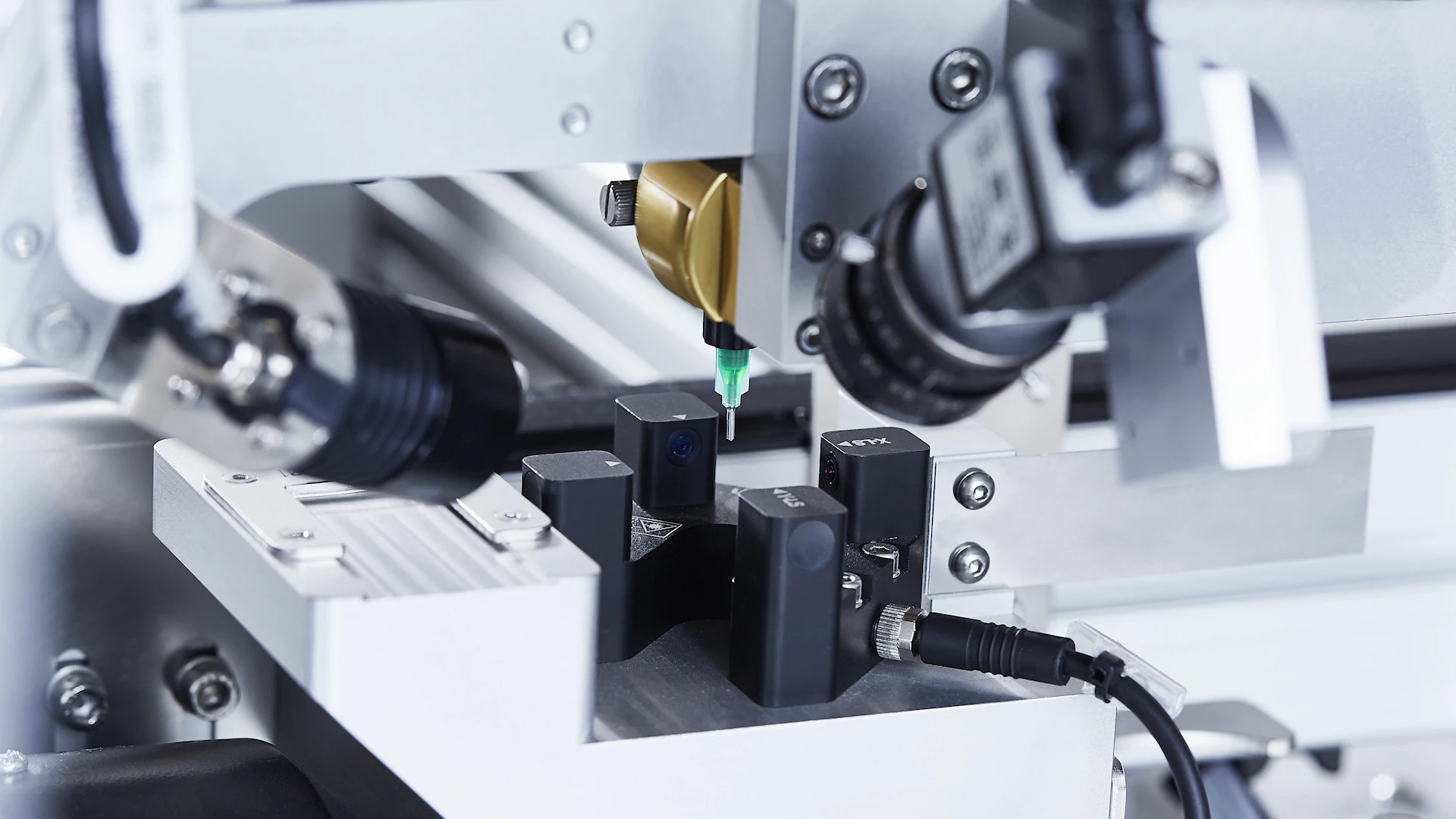

Thermode soldering / Bar soldering

Process-safe thermode/iron soldering

EUTECT thermode soldering or bar soldering is the only system in the world with a definable and µ-precise penetration path Because of that thermode soldering in electronics production is an ideal solution for high process reliability.

Benefit

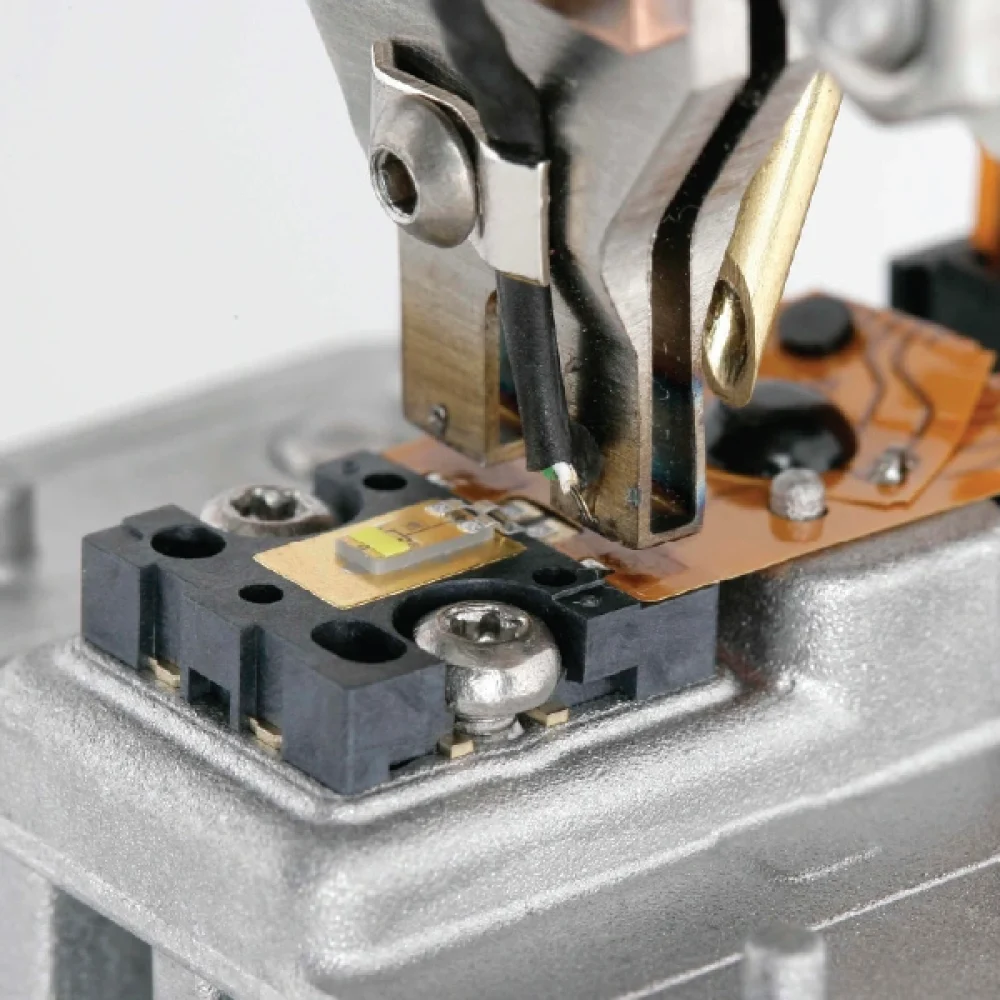

The thermode soldering process enables you to process flexible foils, cable strands and ribbon cables as well as specific SMD components. You achieve high quality results and reproducibility in the soldering process.

Performance

Force, resetting distance and temperature are controlled, visualised and recorded via an HMI control unit. This gives your overall process performance the best possible availability and traceability.

Modularity

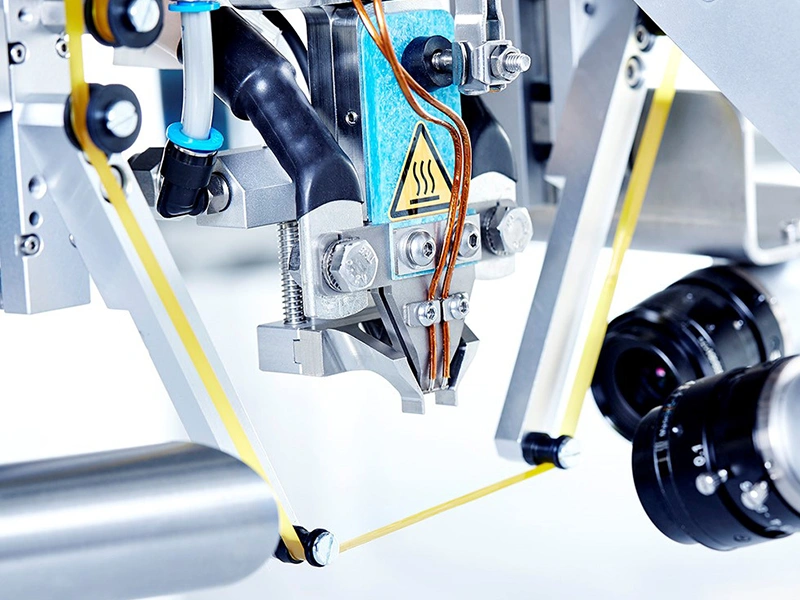

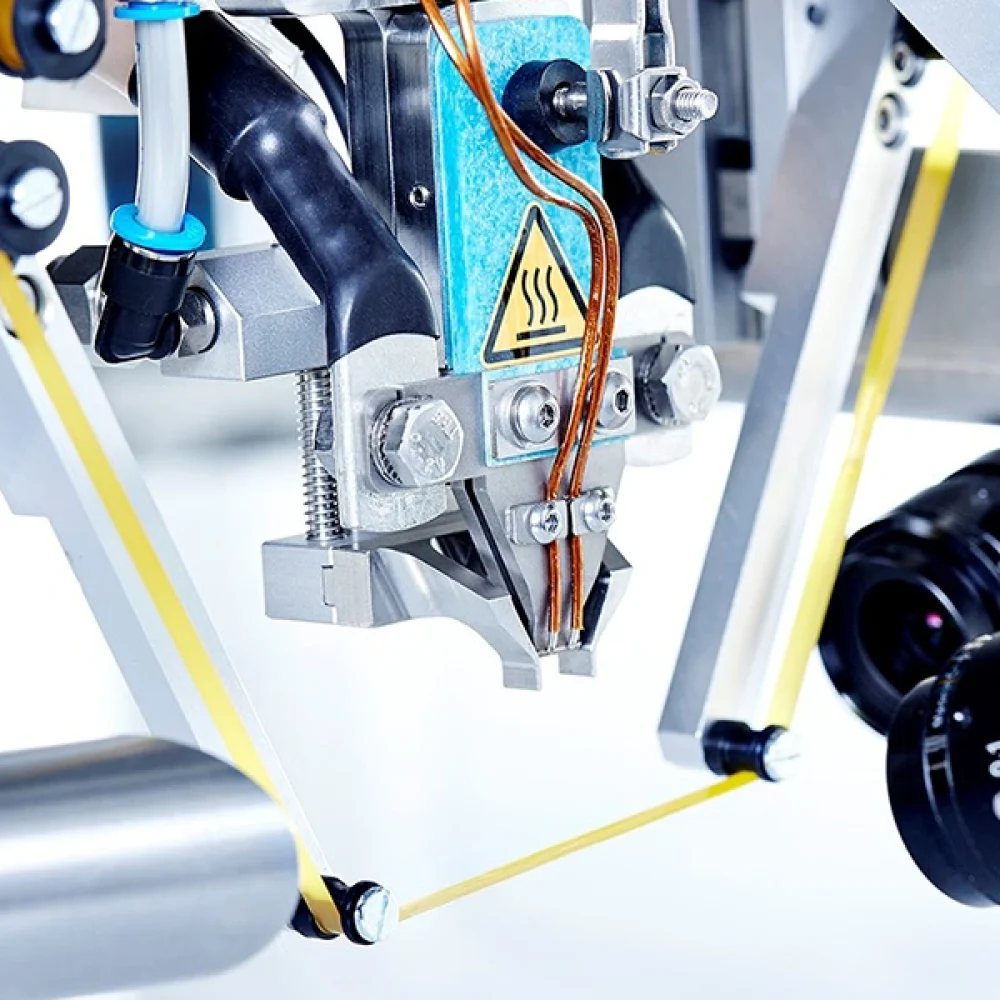

You can integrate the modular thermode soldering system into stand-alone or inline processes. The application-specific thermode geometries are protected by automatic capton feeders and keep your process stable.

Advantages of thermode soldering

A major advantage of this soldering process is the high process stability and exact repeatability, which is for example crucial for wire harness soldering. Thanks to the precise control of temperature, penetration path and contact pressure, it is possible to produce solder joints of consistent quality and reduce rejects. Thanks to its modular design, this soldering process can be flexibly adapted to different production requirements and integrated either as a stand-alone solution or in automated production lines.

Product highlights

High energy efficiency
Temperature-force-displacement control
µ-precise sinking distance
Freely definable energy input
Redundant temperature measurement
100% traceability
Cycle time optimisation of up to 70%
Short set-up times
Minimized solder consumption
Low maintenance effort
Specific thermode geometries
Thermode feed through intelligent linear axes
Contact pressure is displayed in steps of 0.5 N
Integrated Kapton belt module
Rapid heat input
Fast, integrated thermode cooling
Leading and trailing hold-down device
Maximum service life
Minimal footprint
Immediate system and process availability

Basics of thermode and bar soldering

Thermode and bar soldering is based on the principle of heat application using a heating tip (thermode), which is placed precisely on the materials to be soldered. The direct contact between the heating tip and the soldering material allows the necessary heat to be applied to melt the solder. The main difference to other soldering processes is that only specific areas can be heated. This is particularly important if neighbouring components or areas are to remain unaffected by the heating.

Environmental and cost benefits

In addition to the technical advantages, thermode and bar soldering also offers ecological and economic benefits. The precise use of heat and solder minimises material consumption and ensures high energy efficiency. In addition, the set-up times for changing over to different components and soldering tasks are extremely short, which increases production flexibility and reduces costs.

As EUTECT's systems have a modular design, they can be easily integrated into existing production systems and adapted to new requirements.

Precise control and process monitoring

A key feature of EUTECT thermode and iron soldering is the ability to precisely monitor and control the entire process. EUTECT systems offer comprehensive control options for the temperature, contact pressure and penetration path of the soldering tools. As the entire soldering process therefore takes place under perfect conditions, mechanically stable and electrically reliable connections are created.

In addition, all relevant process parameters can be recorded and documented in real time. This is particularly important when complete traceability of the manufacturing steps is required. For example, in the automotive or medical technology industries. Thanks to this comprehensive process monitoring, sources of error can be quickly recognised and rectified, further increasing production reliability.
