Where are SWF with MFC used?
The use of SWF systems with MicroForceControl is focussed on applications with the highest demands on precision and reproducibility. This is particularly relevant for very thin wires with a diameter of less than 0.5 mm.
Typical areas of application are
- Highly miniaturised and complex electronics
- Soldering of flex foils and strain gauges
- Safety-critical applications in Aerospace, MedTech and Defence
- Laser-based and temperature-critical soldering processes
- Automated high-end production with the highest quality requirements
In these applications, controlled wire feeding is crucial for stable and reproducible soldering processes.

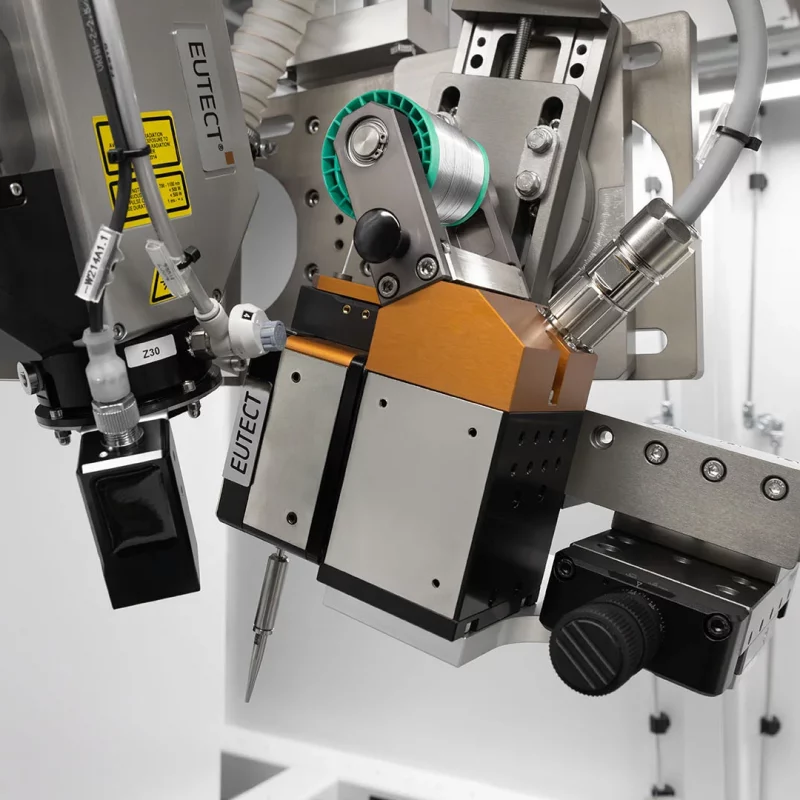

Find out more about our Sensitive Wire Feeder here:
Precise wire feed for sensitive components, the SWF with MFC for miniaturisation
With increasing miniaturisation, the demands on the wire feed increase considerably. Smaller pads, closer spacing and sensitive components increase the risk of process errors.
Conventional systems often lead to
- Mechanical forces too high without force detection
- Uncontrolled wire movements such as kinking or swerving
- Damage to pads or component displacement
In addition, the solder joint often has to be brought up to temperature in advance so that the incident wire melts safely.
An SWF with MFC solves these challenges:
- Extremely precise force control down to ≤ 0.1 N
- Controlled and reproducible placement of the wire
- Safe processing of very thin wires down to 0.1 mm and smaller
The result is reliable solder joints even with minimal geometries.
SWF with MFC for process stability in selective soldering
In automated production lines, not only precision is crucial, but also consistent quality over many cycles.
Typical problems without SWF with MFC:
- Fluctuating wire feed
- Wire jam in the wire feeder
- Varying solder quantities
- Cold solder joints or wire deformation
- Missing process data for monitoring
The MicroForceControl technology (MFC) enables:
- Precise synchronisation of wire feed, temperature and movement
- Prevention of wire jams through active force detection
- Defined amount of solder per solder joint
- Closed control loops instead of open systems
- Real-time process data for analysis and evaluation
The result is maximum repeat accuracy and stable series processes.

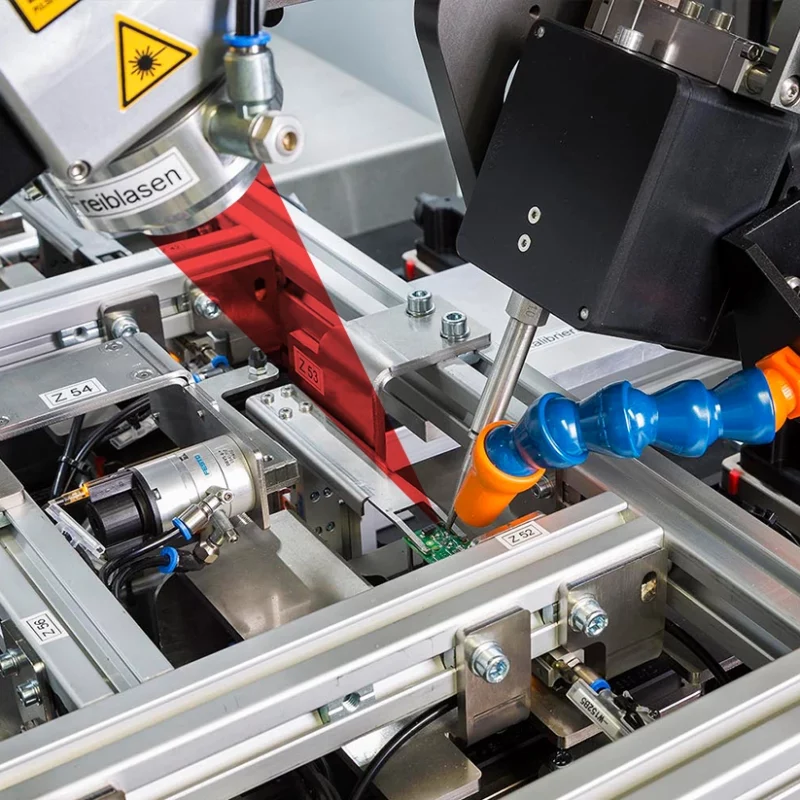

Find out more about our automated laser brazing process:
SWF with MFC prevents wire deformation and process faults
Mechanical stability is a critical factor with very thin solder wire. Without intelligent control, instabilities often occur in the process.
Typical problems are
- Wire kinking or wire jamming
- Uneven feed rate
- Undefined solder quantities
- No process interruption in the event of errors
The SWF technology recognises the smallest resistances and reacts in real time:
- Dynamic adjustment of the feed forces
- Avoidance of mechanical instabilities
- Continuous and controlled wire flow
This ensures a smooth and stable process flow.
SWF with MFC reduces scrap and rework in the soldering process
Defective solder joints cause high costs, especially in high-end applications. Precise wire feeding is therefore a decisive factor in quality assurance.
An SWF with MFC contributes to this:
- Avoid heat stress caused by unnecessary preheating
- Ensure reproducible solder quantities
- Monitor processes in real time
- Ensure stable wetting
In addition, there are no undefined wire remnants in the system or assembly. This leads to a significantly higher first-pass yield and reduces rework and scrap costs.
SWF with MFC as key technology for precise and stable soldering processes
The use of Sensitive Wire Feeders (SWF) with MicroForceControl (MFC) is crucial when maximum precision, process reliability and reproducibility are required.
With this technology, EUTECT enables stable processes even in the most demanding applications and closes the gap between mechanical feed and intelligent process control. The result is high-quality solder joints, lower costs and maximum process control.
