Laser Knife

Cycle time-optimised laser knife technology

The EUTECT Laser Knife is one of the most resource-efficient soldering processes and offers high quality results with the fastest process times and reproducibility when soldering pins, strands, switching lugs and other components.

Benefit

The Laser Knife enables non-contact temperature application via a laser beam. This leads to a massive optimisation of cycle times compared to thermode soldering, with a simultaneous reduction in consumables as well as service and maintenance costs. The Laser Knife can be used independently and is extremely fast with high process reliability.

Performance

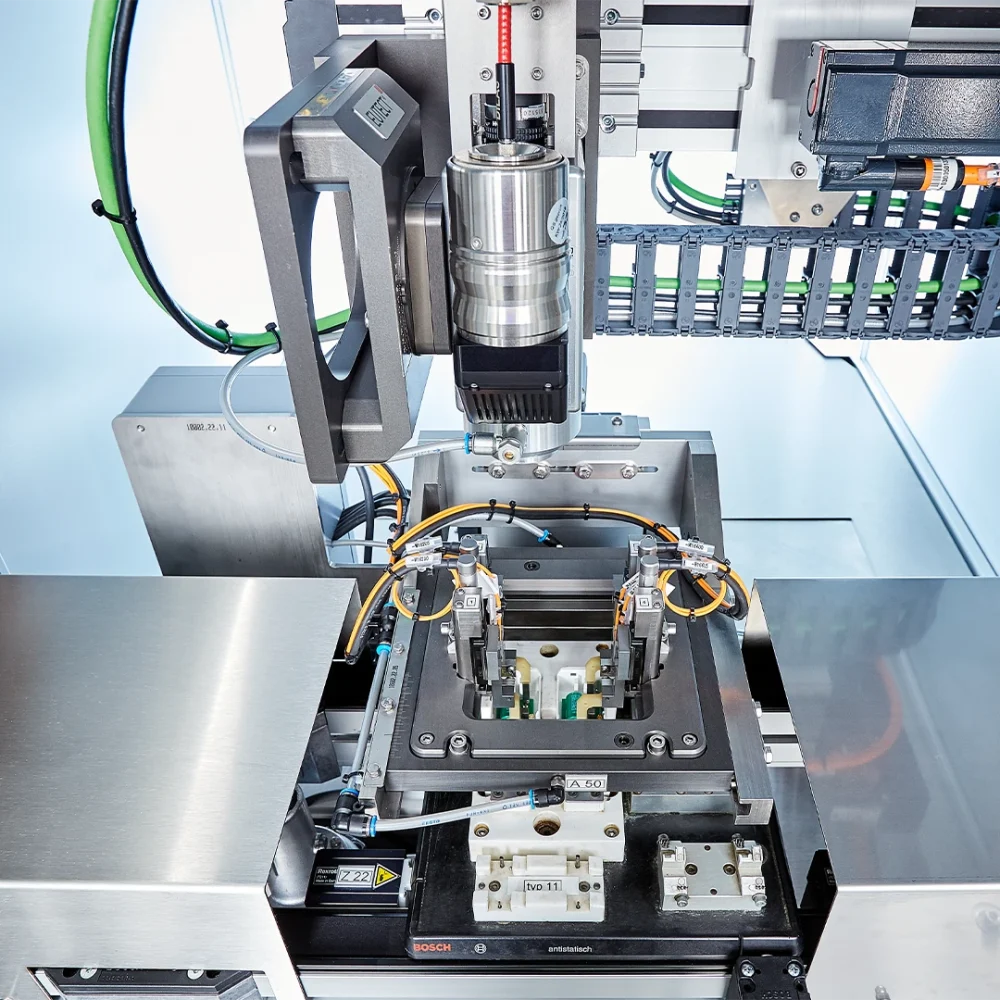

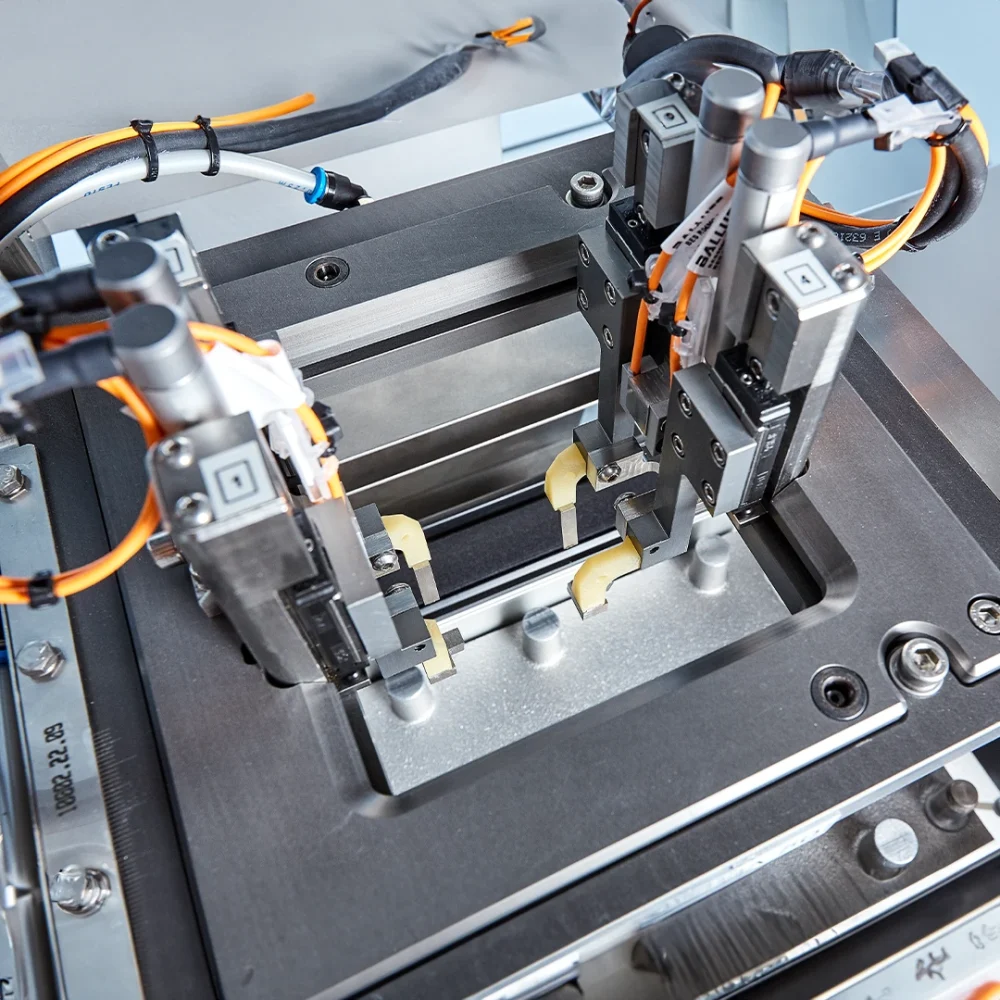

The laser knife consists of one and/or more path and force-monitored hold-down devices and specific laser optics. The components to be soldered are brought together in a defined manner using the knife. The temperature is therefore applied contact-free via the laser beam. The process module is characterised by minimal service and maintenance requirements as well as minimal spare and wear part requirements.

Modularity

The Laser Knife can be extended with galvo optics and X-fold knives for even more dynamic and cycle time-optimised soldering processes. The temperature-controlled laser is equipped with an integrated pyrometer and a camera and guarantees the user maximum process stability, quality and traceability.

Product highlights

Dynamic/cycle time-optimised soldering process
High process speed
Maximum process stability
Maximum energy and resource efficiency
Minimal solder consumption
Minimal service and maintenance effort
Temperature-force-displacement control
Sinkage control/regulation 1 µm
Freely definable energy input
Temperature-controlled laser
100 % traceability
Fast, non-contact heat input
Maximum service life
Low spare and wear part requirements
Immediate system and process availability
Short set-up times
Minimal footprint
Maximum process reliability
Specific Laser Knife geometries
EUTECT Recording Inspection Camera (ERICa) (optional)
Galvo optics
X-fold knife
Leading and trailing hold-down device
